Upright piano P 123 Cabinet

P 123 Cabinet

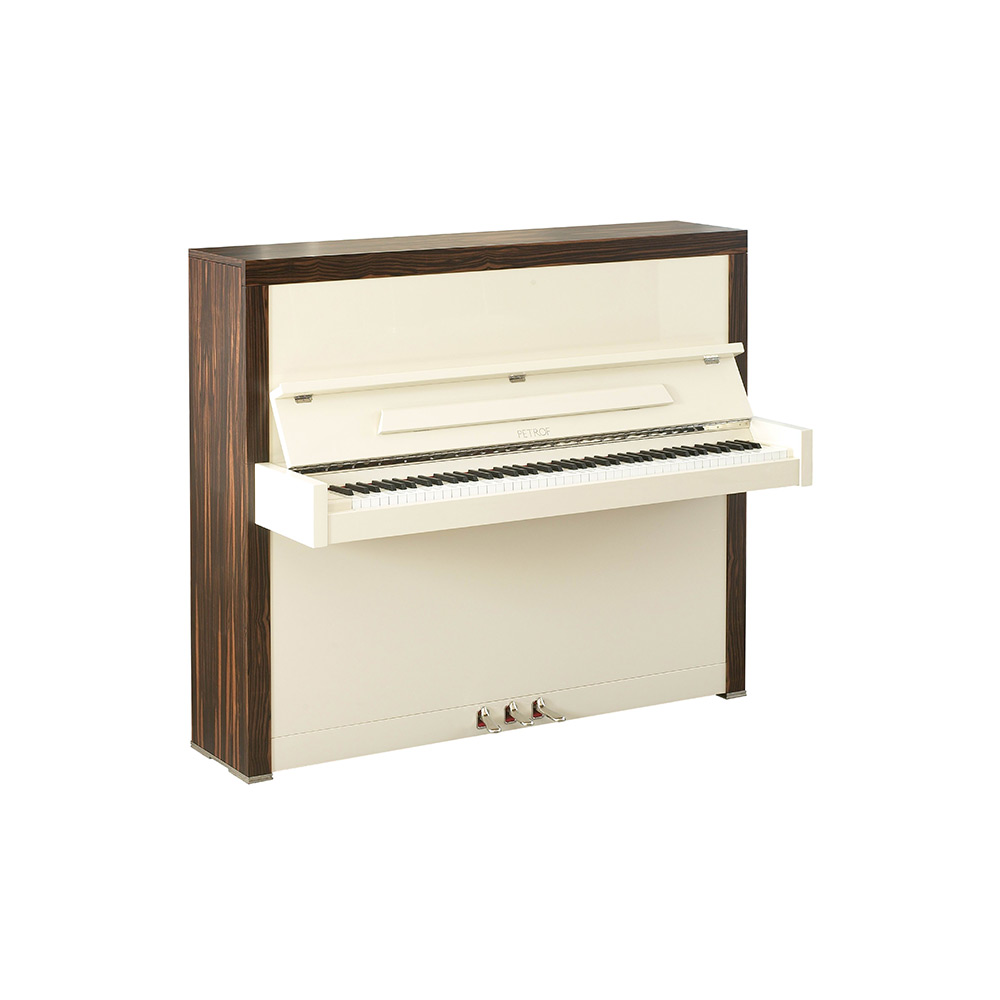

The model for this piano was a design by Ing. arch. Robert Fišera. The instrument has modern, rectangular forms, and for its finish we have opted for a wenge veneer combined with light ivory. However, this model has a variable design and as with the P 127 we can alter its appearance to match your interior or whatever wishes you may have. The panels can be easily changed and we can produce them to order in almost any finish.

Would you like to play and not disturb your surroundings? Try the AdSilent system.

After installing the AdSilent system into your piano, you will hear its sound in your headphones and thus you will not disturb your surroundings.

  • Technical specification
     Depth (mm)   585
     Width (mm)1446
     Height (mm)1232
     Weight (kg)­­­­_
     Sound board materialResonance spruce wood
     Active area of soundboard (m²)1,1852
     Ribs – number, shape10, spherical
     Soundboard constructionwedgewise tapered 9 mm in upper section – 7 mm in lower section
     Cast iron plateWet sand casting
     Surfacing of iron platenitrocellulose paint with bronze dust added
     Pin block - materialMultiplex beech plywood, density 800 - 850 kg/m3
     Wooden frame construction,   materialspruce woods, 3+2 posts
     Cut off bar (corner cross rib) – material, numberbeech, 1
     Cabinet materialMDF, plywood, solid wood
     Bridge - treblebeech wood
     Bridge - bassbeech wood
     Bridge pinssteel – round tips
     Agraffes material - numberbrass, 88
     Strings - materialsteel wire Röslau Germany, copper winding Degen Germany
     Hitching of plain stringsdouble
     Dampers - numberled.70
     Pedalsleft – Piano pedal, midle – Muffler (moderator) pedal,
     right – Forte pedal
     CastorsNo
     Felts colourred
     Hydraulic slow close fallboard mech.yes
    Cabinetpdf218.73 KB
