P 122 H1

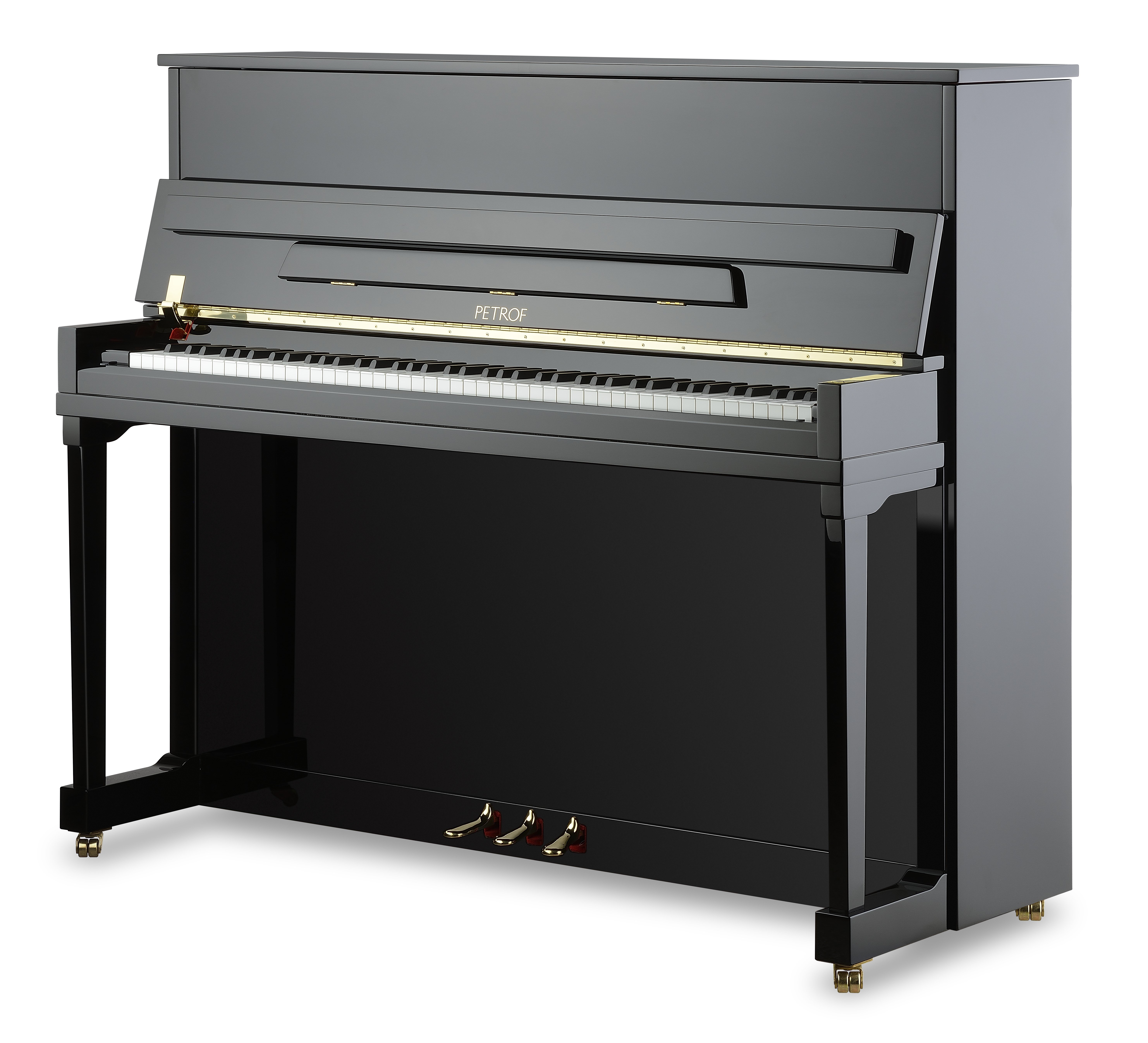

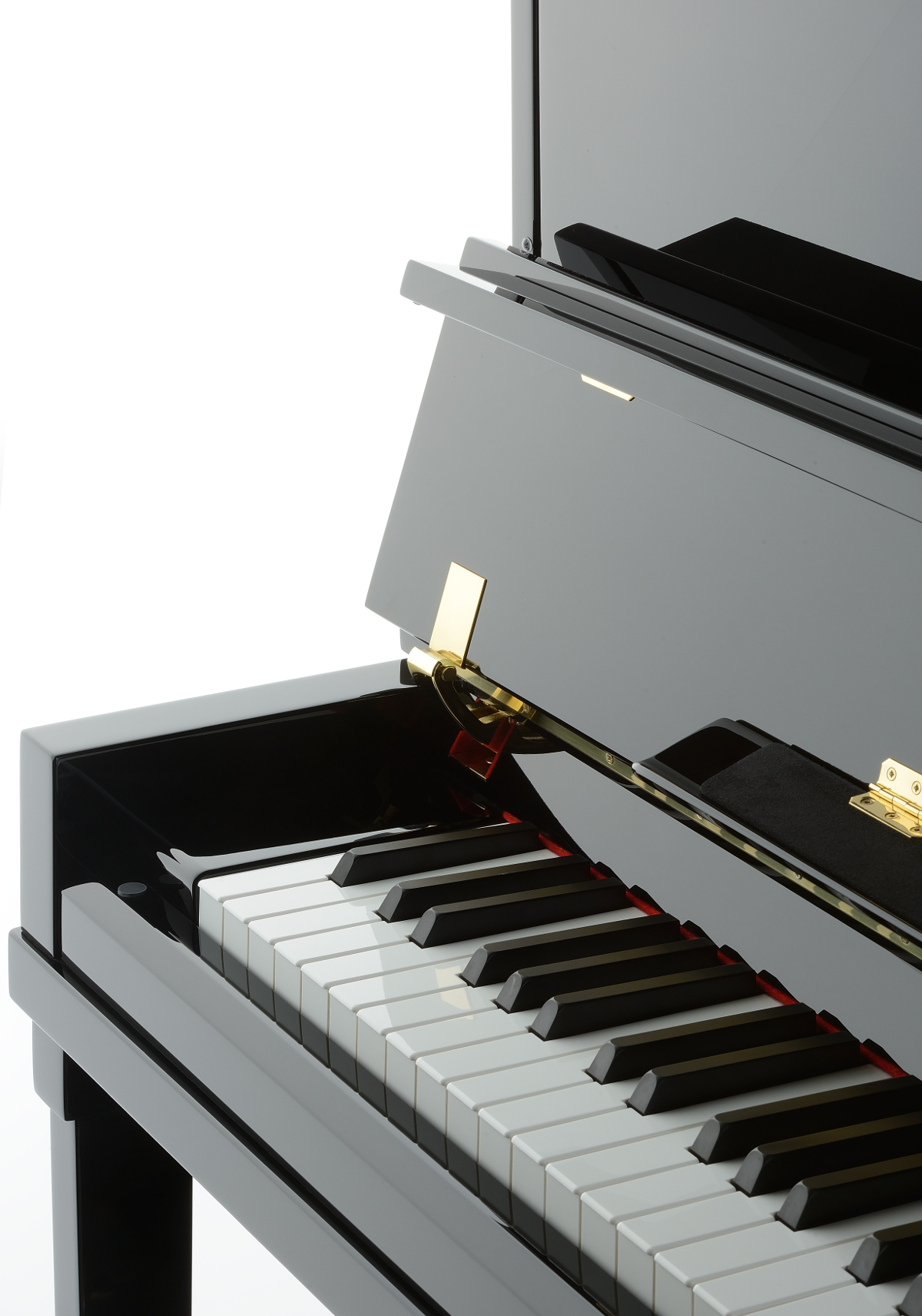

We developed the P122 H1 in answer to customer requests. With the design of its cabinet, and especially its distinctive keybed, it proudly harks back to the roots of the piano-maker’s art in Europe. While at first sight the cabinet appears minimalistic, it boasts some precisely elaborate and detailed features. The final shape of the instrument was the inspiration of specialists at our Technological centre, and we are sure that this piano will find many happy customers.

upright piano ground view

  • Depth - 570 mm | 22 1/2"
  • Height - 1220 mm | 48"
  • Width - 1470 mm | 57 7/8"
  • Weight - 224 kg | 494 lb

Finish

Black, high polish (0801)
* Other finishes per order
  • Technical specification
    Length (mm)   570
    Width (mm)1470
    Height (mm)1220
    Weight (kg)224
    Sound board materialResonance spruce wood
    Active area (m²)1,1513
    Ribs (number, shape)10, asymetric
    Soundboard constructionwedgewise tapered   9 mm in upper section - 7 mm in lower section
    Cast iron plateWet sand casting
    Surfacing of iron plate nitrocellulose paint with bronze dust added
    Pin block - materialMultiplex beech plywood, density 800 - 850 kg/m3
    Wooden frame postsspruce wood, 3+2 posts
    Cut off bar (corner cross rib)beech, 2
    Bridge - treblebeech wood
    Bridge - bassbeech wood
    Bridge pinssteel - round tips
    Agraffes material - numberbrass, 88
    Strings - materialsteel wire Röslau Germany, copper winding Degen Germany
    Hitching of plain stringsdouble
    Dampers - number1 - 70
    Black keysAcrylate plastic
    Pedalsleft - Piano pedal, midle - Muffler (moderator) pedal, right - Forte pedal
    Castorsyes
    Felts colourred
    Hydraulic slow close fallboard mech.yes
