Stingray

STINGRAY

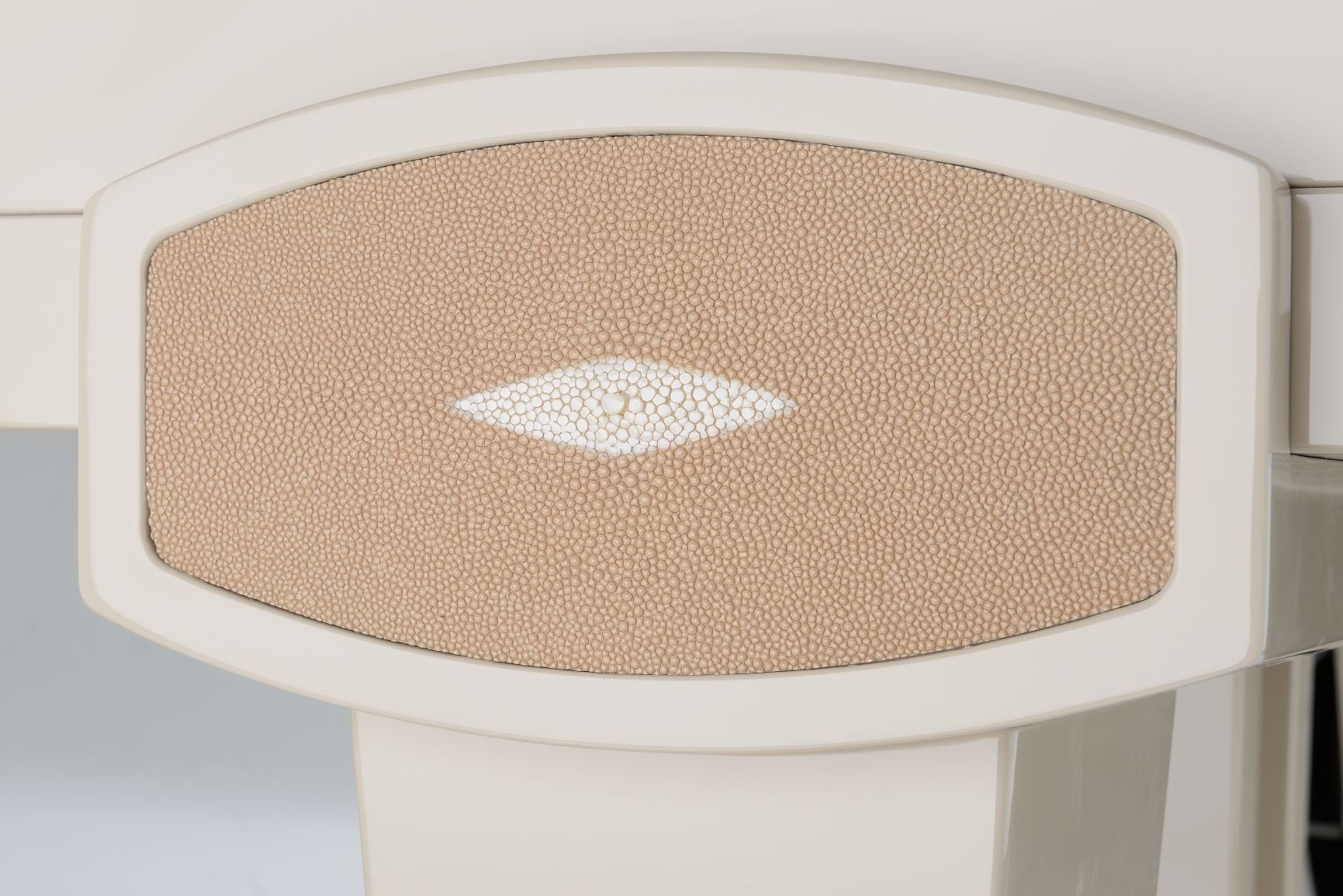

The Stingray grand piano is made especially for the occasion of the 155th anniversary of the PETROF company. Its dominant design motif is the decoration of its specially shaped legs with inlaid pieces of coloured leather from the stingray. Stingray skin will paralyze your senses. It is an incredibly hard and durable material, but fine at the same time. Its appearance resembles small beads that were embedded next to each other by nature itself. The diamond on the ray’s back is unique, just like the fingerprints of the master who is responsible for building of this instrument.

  • Technical specification
     Length (mm)   2120
     Width (mm)1550
     Height (mm)1025
     Weight (kg)_
     Sound board materialResonance spruce wood
     Active area (m²)1,401
     Ribs (number, shape)13, asymetric
     Soundboard constructiondiaphragmatic tapered by CNC shaper 9,5 - 7,5mm
     Cast iron plateWet sand casting
     Surfacing of iron platemetallic grey semi-matt RAL 850 M
     SurfacingPES high gloss of light shade PANTONE 7528C
     Pin block – materialMultiplex beech plywood, density 800 - 850 kg/m3
     Inner rim material12 laminas – beech, birch
     Inner rim thickness55 mm
     Wooden frame posts5 longitudinal
     Descant post material spruce
     Cut off bar (corner cross rib)round shaped, multiple birch or beech
     Outer rim – materialbirch plywood sandwich, inner veneer TAMO, glazed for shade PANTONE PANTONE 7528C
     Bridge – treblesolid maple wood
     Bridge - basssolid maple wood
     Bridge pinssteel – ground tips
     Agraffes material – numberbrass, 1-50
     Duplexess - fronth1 - c5
     Duplexes - rearfis1 - c5
     Strings - materialsteel wire Röslau Germany, cooper winding Degen Germany
     Hitching of plain stringssingle
     Dampers - numberled.69
     Actionstandard -  RENNER ORIGINAL
     Hammer headsRENNER original
     KeyboardTangential sawn spruce wood, individually balanced with lead
     Black keysEbony wood
     Pedalsleft - Unacorda (Piano) pedal,     middle -  Sostenuto (Prolongement) pedal,     right - Sustein pedal
     Legs and castorsthick legs, big braked castors
     PETROF sign on right side wallPETROF
     Felts colourred + black
     Hydraulic slow close fallboard mech.yes
     Ray skinDICTUM, size 7 inch, beige
    Stingraypdf225.76 KB
